Характеристики

Type: Heat Press Machine

Condition: New

Plate Type: Flatbed Printer

Model Number: TOB-DG-100L

Usage: Battery Electrode

Automatic Grade: Semi-automatic

Color & Page: single color

Voltage: 110V / 220V AC

Dimensions(L*W*H): 385 mm x 245mm x 355mm

Weight: 55 kg (180 lbs)

Warranty: 1 Year, One Year with lifetime support

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas

Сертификация: CE

Product name: Electric Roll Press Machine

Application: Battery Electrode

Rolling press width: Max 100mm

Rolling press accuracy: â‰¤Â±0.005

Rolling press thickness: 0-2mm adjusted with Dial gauge

Rolling press speed: 0-40mm/s adjustable

Roller Dimensions: 96mm(Dia.) x 100mm(W)

Material: hardened tool steel

Основная информация

Сертификация: CE

Model Number: TOB-DG-100L

Оплата и доставка Условия

Packaging Details: Internal anticollision protection, external export wooden box package

Supply Ability: 10000 Set/Sets per Month Laboratory Electric Press Machine

Характер продукции

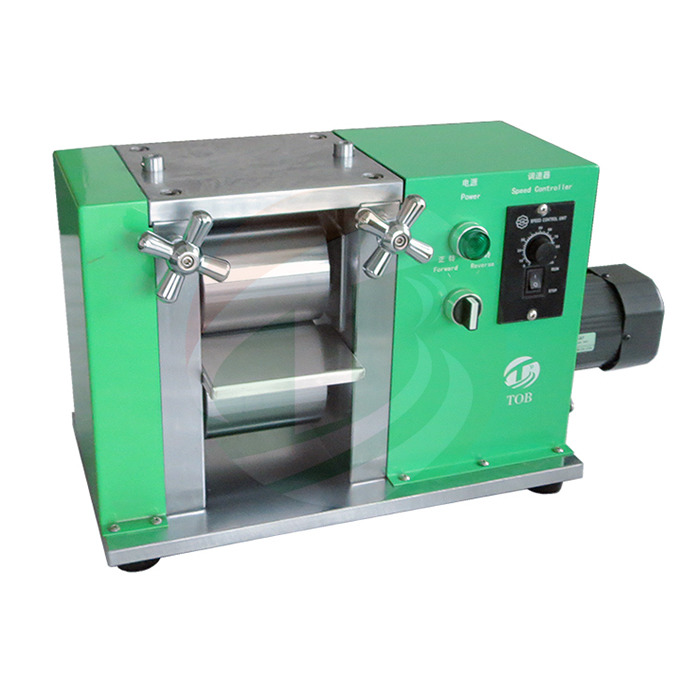

Small Electric Roller Press Machine for Battery Electrode Calendering

Name: Electric Battery Electrode Small Lab Roll Press Machine For Battery Electrode Calendering
Brand: Electric Battery Electrode Small Lab Roll Press Machine For Battery Electrode Calendering
SKU: TOB-DG-100L
Price: 1 USD
Availability: InStock
Rating: 4.5 (195 reviews)

PRODUCT INFO

Electric Precision 4" (100mm) Width Lab Roll Press Machine with Dual Micrometer

SPECIFICATIONS

TOB-DG-100L Lab Roll Press Machine is a compact precision electric rolling press machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.

Model

4" Width(100mm) Lab Roll Press Machine TOB-DG-100L

Warranty

One year limited manufacture warranty with lifetime support

Working Voltage

110V / 220V AC single phase selectable

Power

120W Total

Structure

1 Heavy duty steel frame, gears and handle

2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 62)

with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum

4 Equipped with a transparent protective plate, the use of security

Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 62)

with Cr electroplated coating. With finish > 0.8

Rolling press accuracy

≤±0.005

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 100mm

Rolling press speed

0-40mm/s adjustable

Product Dimensions

385 mm(L) x 245mm(W) x 355mm(H) (15" x 9.5" x 14")

Weight

55kg 55 kg (180 lbs)

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Electrode	Size	Original thickness	Finished thickness
LiFePO4 double sides	50mm (W) x 260mm (L)	0.205mm	0.09mm
LiMn2O4 double sides	50mm (W) x 260mm (L)	0.205mm	0.09mm
Copper foil + graphite (single side)	75mm (W) x 240mm (L)	0.09mm	0.04mm

Sample testing is available upon customer's request
